Wipers

Wipers (Scrapers)

Wipers are used in pneumatic and hydraulic cylinders. Their purpose is to remove dirt, moisture, and other contaminants from the piston rod. When the rod retracts into the system, the wiper prevents contaminants from entering, helping to avoid damage to the rod, cylinder wall, and other components.

In addition, the wiper prevents premature failures and contributes to a longer cylinder service life. Despite this important function, the wiper is often underestimated.

When selecting the right wiper, it is essential to consider the profile, environmental conditions, travel speed, and temperature.

The most common wipers are single-acting, where the element serves purely as a scraper. There are also double-acting wipers (combi wipers) that function both as a rod seal and as a scraper.

Wipers are available for both open and closed grooves.

Wiper dimensions

To determine the size of your wiper, several factors are important:

The outer and inner diameter of the cylinder, the groove length, and the wiper height.

(Sometimes a wiper comes with multiple height steps.)

Open Groove	Closed Groove	Closed Groove Double Acting

Custom wipers

If your size is no longer available, we can also produce custom wipers.

With our production machine we can supply made-to-measure wipers.

Thanks to a large database of profiles, we can deliver your desired wiper quickly.

A broad range of materials is available as well.

Wiper materials

Wipers are commonly available in NBR, Polyurethane, FKM (Viton), and PTFE.

For PTFE versions, a PTFE ring is energized by one or two O-rings.

For NBR, PU, and FKM, versions with a metal core or metal case are also available.

Cross-reference list

Techniparts BV	Materiaal	Anyseals	Freudenberg	Hallite	Dichtomatik	Trelleborg	Parker	Sealtech	Kimman	FPE Seals

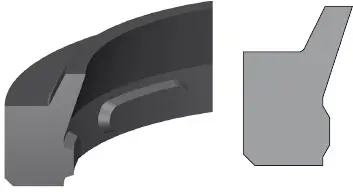

	NBR	WS-10	P6	33	AE 40	WRM	A5	WRM	WSM	-
	PU	WS-10	PU6	831	AE 42	WRM	A5	WRM-P	WSM-P	MSWE
	NBR	WS-11	ASOB	-	AE 41	ASW	A1	DSR	DP8-H9	-
	PU	WS-11	AU ASOB	834	AE 47	ASW	A1	DSR/P	DP8-PU1	MSWS
	Polyester	WS-17	-	38	AE 38	-	-	WRM-H	WSM/HP	MW38
	NBR - Metaal	WS-20	AS	37	AD 51	WSA	AM	GA	DAS-H9	MCWN

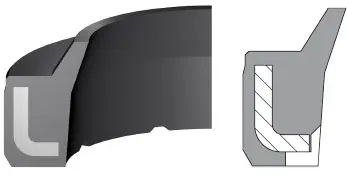

	NBR - Metaal	WS-21	P7	32	AD 53	-	-	GA/R	RS-H9	-

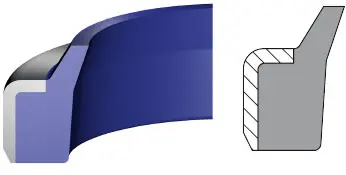

	PU - Metaal	WS-22	AUAS	860	AM 43	WRM-PC	-	PW	P/DAS	MCWE

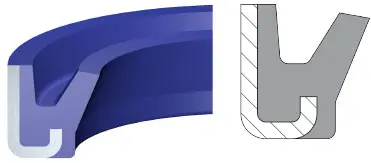

	PU - Metaal	WS-23	AUPS	862	AM 54	SWP	*AF*	SWP	SWP-PUR	MCWI

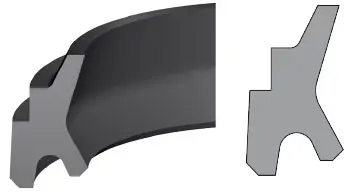

	NBR	WS-D14	P8	-	AD 51	DA17	-	DSR/UP	DA17-N90	MSWHN

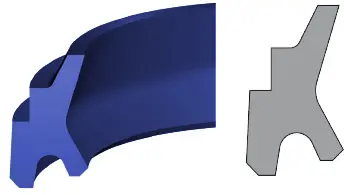

	PU	WS-D14	PU8	-	-	DA17	-	-	-	-

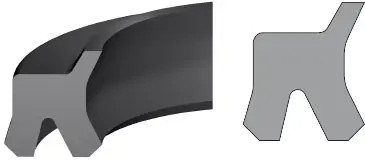

	NBR	WS-D15	P9	839N	AD 53	DA22	AY	UWR	UWR	-
	PU	WS-D15	PU 11	839	AD 48	DA22	AY	UWR/P	UWR/P	MSWH

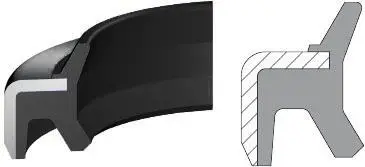

	NBR - Metaal	WS-D24	-	-	ADM 55	-	-	PW	-	-
	PU - Metaal	WS-D24	-	-	-	-	-	PW/U	DAS/SCB/PU	MCKBI

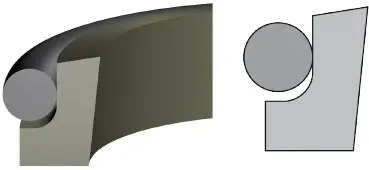

	PTFE / NBR	WS-30	-	-	A 80	Excluder	-	-	-	-
	PTFE / NBR	WS-D31	-	E2W	AD 60	Excluder 2	-	WE 3	TF 157	MWTF
	PTFE / NBR	WS-D32	-	A5W	AD 61	Excluder 5	-	WE 5	TF 159	MWTF

Different wiper brands

Brand Logo	Brand Name	Types	Material
	HALLITE	Hydrauliek Type 38, 33, 520, 831, 834, 839, 842, 846, 860, 862	NBR, Polyurethaan, PUR, Polyester, Ptfe, Teflon, Rood, Blauw en ook Zwart
	TRELLEBORG	Turcon wiper: Excluder 2 en 5. Zurcon wiper: Excluder 500, DA22, DA24, ASW, WNE, WNV, WRM/PC, WP. Rubber/metal wiper: WRM/C-WSA, WRM, DA17. PTFE / TEFLON ( TURCON ) : T01, T05, T10, T12, T16, T19, T24, T25, T29, T40, T42, T46, T47, T51, T52, T59, T78, T99, M12, Q2J, MO2, M83, PUR    ( ZURCON ) : Z201. UHMWPE ( ZURCON ) : Z20, Z22, Z24, Z43, Z431, Z48, Z51, Z52, Z80	NBR, FKM, HNBR, EPDM en ook FFKM
	ERIKS	RX, EHD, MES, 930, 007F EMF, 008N, 007N EMN, 006P.	NBR, Viton ®, FKM, FPM, Epdm, PU, AU, Polyurethaan, Messing, RVS, Ptfe en ook Stainless Steel.
	PARKER	A1, A2, AM, AH, AF, AY, A5, A6, A7, Y3, Y4, AD, AG, AT, W7 Poly-Pak	NBR, Polyurethaan, Viton, HNBR, Ptfe, FKM, FPM, Zwart, Bruin, Groen P5008, P5009, P6000, P5004, P5000,P5001, P5062, P5075, P5007, P5070, P5011, P5080, P5010, P5012, P4300, P5500, N3571, N3570, N3578, N3580, N3584, N3582, E3676, E8536, E8608, V3664, V3656, V3638, V3681.
	DICHTOMATIK	AD 48 (AD48), AD 51 (AD51), AD 60 (AD60), ADM 55 (ADM55), AE 40 (A40), AE 41 (A41), AE 42 (A42), AE 47 (A47), AM 43 (AM43), AM 44 (AM44), AM 45 (AM45) AM 55 (AM55).	NBR Rubber 90 30 06 (903006), Epdm, PUR TPU 95 34 01 (953401) Poly-urethaan Ptfe, Teflon brons grafiet, Kleuren; blauw, zwart
	CLARON	PWB, PWO, PWS, PWM, WM, PWE, CSW, CSWM, PMW, PFB, PFP, UPWM, PWD, EW, 931, 941, 951, PWH, PWN, PWC.	NBR 70 shore, NBR 90 shore, AU, Polyurethane.
	SKF	A01-A, A01-B, A02-A, A02-B, A02-I, A03-A, A04-A, A04-B, A07-A, A08-A, A-08-B, A09-A, A10A, A11-A, A11-I, A12-A, A13-A, A25-F, A26-F, A27-F.	Ecopur, H, G, T, X, S, XH, XS Ecopur, TPU, CPU, NBR, HNBR, Groen, rood, blauw, zwart, grijs.
	KASTAS	K05, K06, K07, K09, K10, K11, K12, K27, K703, K30, K52,	PU, NBR, Staal, Polyurethaan
	DLI SEALS	B, MDK, ICL, MWM P, IWM, MWS, IWS, WRM, EWS.	NBR, TPU
	JAMERS WALKER	Wiper L split en eindloos , Wyclip Heavy Duty, Scraper W3 Lionsele	NBR, Polyurethane PU
	JM CLIPPER	SSW, P, H	FPM, NBR
	BAL SEAL	Serie 13, 14	UHMW PE, Ptfe Glas Mos, Fiber Carbon, TA, G, GC, GFP, GFPM, GL, SP, UPC, FDA
	KACO	QAN (NM) – QHW (NGU VGF NGF VGFU) – QHLH (VGU) – QHLP (RGU) – QFN (VG) – QFS – QVN PVS (NF).	NBR, ACM, VMQ, FKM en ook FPM.
	FREUDENBERG	PU 5, PU 6, PU 11, P 8, P 9,PT 1, PT 2, AUAS, AUPS, AS, ASOB, AUPS, AUASOB, P6, PU5, PU6, PU11, PT1, PT2, P8, P9, PRW 1.	PU, Polyurethaan, Ptfe, NBR, Viton, HNBR, 95auv149, 95auv925, 95 auv 149, 95 auv 925 en ook Disogrin.
	POLYPAC	WRM, WRMP, WRMC, WTF, DSR, DSR U UP, 10, DK, DSR/P, 10GA, GA P, GA R, NW, PPW, PWB, PW G U , SWP, UWR, UWR/P, UWR/PI, UWR/PN, WRM, WRM-H, WRM-P, WRM-PI, WRS, WTF en ook DR.	NBR, HNBR, MVQ, FPM, Epdm, Viton, Ptfe, PT01, PT, Polyurethaan, PUR, AU, HDPE, PA, PF, PBTP, PU02, PU05, PU08, PU10, PU12, PU14, PU20, PU21, PU22, PU23, PU25, PU26, PU27, PU30, PU40, Wit, Groen, Zwart en ook Bruin.
	HUNGER	AI, AI-D, AIST, A-EIS, A-EIS-S, A-EIS-SL	NBR, PU, Ptfe, POM Kunststof, PA 6, PA-CF, UHMW PE, PEEK, Hytrel, MVQ, FPM, FMVQ
	EVCO	590, EPA, GHK, GHW, GPW, GPY, RCM	Ptfe, PU Polyurethaan, AU, NBR
	HECKER	AB, ABR, ABP ABR1, ABR2, ABR3, ABF1, ABF2, ABP1, ABP2, ABP3	Gummi, Rubber, NBR, Ptfe, PU, AU, Gi.
	NORDEX	ARAN, AWSW, AWBB, AWSN	PU, Polyurethane,
	GUARNITEC	GHM, GHK, GHY, GHW, GPA, GHP, GPW, GHF, GGW,	AU, PU, NBR, Rubber Metaal.
	ANGST EN PFISTER	LWPU5C, LWPU6C, LWPU7C, LWPU8C, LWPT1C,	Nitrile NBR, PUR AU, Teflon Ptfe.
	DICHTA	DAS, DP6, DP7, DP8, DRS, DWR	NBR, Polyurethaan, PUR, Polyester, Ptfe, Teflon, FKM, Viton
	POLILAS	PT, PT1 PTM, PBT, PBT1, PBS, PTS, PTS1.	NBR, AU, PU en ook Polyurethaan.

Wiper applications

A wiper can be used in hydraulic cylinders, pneumatic cylinders, steering cylinders, single-acting agricultural cylinders, spring cylinders, suspension systems, double-acting subsea cylinders, telescopic cylinders, and in equipment such as cranes, earthmoving machines, excavators, Atlas, O&K, Neuson, Volvo, Fiat, Fuchs, Hitachi, JCB, Caterpillar.

Cylinder manufacturers

Bosch Rexroth, ABS, Buter, Wassenaar, Uniparts Kavee, WDH, Montan, Evergreen, Vremac, Hänchen, Eaton, Hydrowa, Parker, Hydropa, Integral, ASI, Staudt, Oudshoorn, Weber, Enerpac, A4, HyLu, Flexion, Festo, Parker, Norgren, Asco Joucomatic, Emerson, Norgren, Camozzi, Metal Work, SMC.

All wiper brands at a glance

Hallite, Kaco, Trelleborg Busak – Shamban, Merkel, Polypac, Hunger, Evco, Dichtomatik, Hecker, Nordex, James Walker, JM Clipper, Balseal, Claron, Economos Seal Jet, Guarnitec, Parker Prädifa, Kastas, DLI, Angst & Pfister, Eriks, Sakagami, Poly-pak, Hegetu, Macma, Sealtech, NAK, Vota, Hercules, Ebele, Hercules, SKF CR Chicago Rawhide, Snijders, NOK, Advanced Products, Kimman, Dowty, Sealparts, Profiltra, Skega, Forsheda, Stefa, Polilas, Furon Saint Gobain, Sikkufit, MFC, DZ Ding Zing Seals.

More information or a quote?

hydraulic, hydraulique, hydraulik, 油圧, hidráulica, idraulica, υδραυλικός, гидровлическо, pneumatic, pneumatique, pneumatisch, pneumatik, πνευματικός, pneumatico, 空気, пневматическо, neumático, wiper, scraper, abstreifer, 防尘圈, スクレーパ, avskrapere, pierścienie zgarniające, rascadores, avstrykare, afstrygere, seal, joint, dichtung, 封印, σφραγίδα, guarnizione, シール, 물개, уплотнение, sello, seals.

Also see our oil seals.

We supply every brand of wiper in every size! If we don’t have it in stock, we know where it is in stock, or we will propose a 100% equivalent alternative.

We deliver worldwide. If we do not have it in stock, we know where the stocks are or we will offer a 100% alternative.
