Fittings

Do you need the fittings immediately? It is of course possible to order your products via our webshop and have them delivered at home.

Category:

Fittings is easy to order online.

Do you need the fitting immediately? It is of course possible to order your products via our webshop and have them delivered at home.

Fitting is the collective name for various products that you use to connect or close pipes. So there are many different types of fittings. From knee coupling to cross piece. You may need it all when laying pipes. Without the right fit, it is difficult to lay a pipe properly. That is why we offer a wide range of fittings.

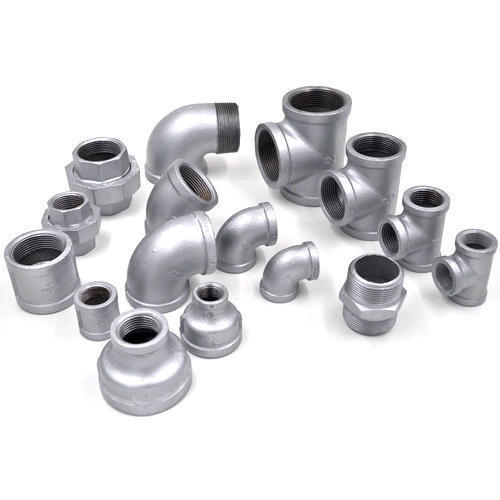

These fittings fully comply with the requirements of EN 10242. The accurate finish and high quality  of the casting of the products mean that the fittings represent a quality product, which fully complies with ISO standards and European EN standards for the fittings . These fittings are made of white malleable cast iron and produced in Europe. We have a wide range of connection systems in stock for you in black and hot-dip galvanized. We also have the entire range available in stainless steel, manufactured according to standard ASTM A-351, Grade CF8M (type 316).

The application of fittings

Each piece of fittings has its own application. For example, you use an ordinary connector to connect two pipes. A T-piece to connect several pipes. To seal a pipe a sealing cap. You also have adapter rings to connect different sizes of tubes. Fitwerk is of course available in different sizes and degrees.

Technical data according to DIN 2999 Black

Thread: According to DIN 2999 (ISO/R&)

internal thread: Cylindrical
Male thread: Conical 1:16

To press:

temp. -20°C to 120°C 25 BAR
temp. up to 300 °C 20 BAR

Material:

White Malleable Cast Iron
In accordance with DIN 2950
(UNI ISO 5922) W 40-05
Colour black

Type Fitwerk

NR 1, NR 2, NR 40, NR41, NR 90, NR 92, NR 96, NR 98, NR 130, NR 180, NR 240, NR 241, NR 245, NR 246, NR 270, NR 280, NR 290, NR 300, NR 312, NR 340, NR 341, NR 529A.

Technical data according to DIN 2999 Galvanized

Thread: According to DIN 2999 (ISO/R&)

internal thread: Cylindrical
Male thread: Conical 1:16

To press:

temp. -20*C to 120°C 25 BAR
temp. up to 300°C             20 BAR

Material:

White Malleable Cast Iron
In accordance with DIN 2950
(UNI ISO 5922) W 40-05

Fit work type

NR 1, NR 2, NR 3, NR 40, NR41, NR 90, NR 92, NR 96, NR 98, NR 130, NR 180, NR 221, NR 240, NR 241, NR 245, NR 246, NR 270, NR 280, NR 290, NR 300, NR 312, NR 340, NR 341, NR 471, NR 529A.

Technical data Stainless steel BSP gas thread fittings

Manufactured according to:

ASTM A-351
Grade CF8M (Type 316)

Pressure class according to:

ANSI B 16.3 / 150 Ibs

Dimensions according to:

ANSI B 16.3

Fit work type

RVS: NR 3, NR 22, NR 23, NR 40, NR 90, NR 92, NR 120, NR 130, NR 180, NR 240, NR 241, NR 245, NR 270, NR 280, NR 290, NR 300, NR 312, NR 340, NR 341, SN, AP, TL/RVS, FIG. 12, FIG. 13, BF

RVS 316L: BF, DF, VF,

Black: 23 Z, 16 Z, VF, LF,

Verzinkt: 23 G, 16 G, DF,

Gasket: FA

Noxon *** Local Caption *** foto supplier
